Interactive Flat Panel — the IFP Series

The ultimate change-maker for educational institutions and any environment where cutting-edge collaboration is essential. Six sizes, one specification you can trust.

Choose your size

One panel, six sizes

All models share the same core: 4K UHD, 40-point infrared touch, dual OS and in-built AI teaching software.

55″

IFP55S · 60Hz

65″

IFP65S · 60Hz

75″

IFP75S · 60Hz

86″

IFP86S · 120Hz

98″

IFP98S · 120Hz

110″

IFP110S · 120Hz

4K UHD DisplayCrisp, clear and vibrant visuals

40-Point TouchUltra-responsive for smooth collaboration

Built-in SpeakersPowerful sound for every classroom

Wireless SharingShare from any device, anytime

Multiple ConnectivityHDMI, USB, Type-C, LAN, Wi-Fi & more

See it in action

The interface, straight out of the box

Actual screens from the panel — the launcher and teaching tools your staff use every day.

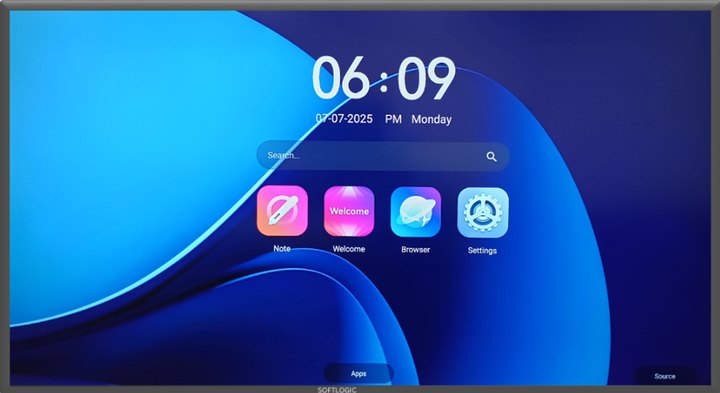

Smart Teach panel home screen with clock, search and app launcher

Home launcher

Everything one tap away

A clean Android home screen greets teachers with the time, a universal search bar and the tools they reach for most — no menus to hunt through.

Note — instant whiteboard for writing and annotation.

Browser — pull up any resource live in the lesson.

Search & Settings — find apps fast; adjust the panel in seconds.

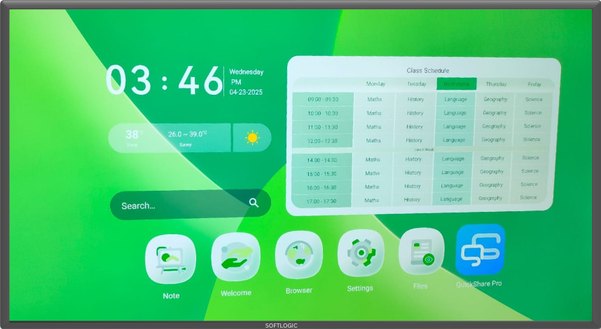

Smart Teach panel showing a weekly class schedule and screen-share tools

Built for teaching

Timetables, files & sharing together

Widgets like the weekly class schedule and temperature sit alongside file access and screen-share — everything a lesson needs on one board.

Class schedule — the week's timetable pinned to the home screen.

Files — open lesson material straight from local or USB storage.

Screen Share Pro — mirror laptops, tablets and phones wirelessly.

Powered for performance

Hardware that keeps up with the class

A high-performance RK3576 platform with generous memory and storage — built to run AI tools, video and multitasking without lag.

Android 16

Latest Android OS for a smarter, up-to-date experience.

8GB RAM

Seamless multitasking and smooth performance.

128GB ROM

Ample storage for apps, files and lesson content.

RK3576 Chipset

High-performance Rockchip processor at the core.

Octa-Core CPU

Powerful octa-core processor for speed you can rely on.

Powerful GPU

Enhanced graphics for immersive visuals and smooth interaction.

In-built AI software

Teaching tools with AI built in

From lesson plans to quizzes, the panel helps teachers prepare and present — with NCERT-aligned content ready to go.

AI Insights

AI Lesson Plan Generation

AI Assistant

AI Flashcards

AI Summary

AI Quiz

NCERT Content & more

Key features

Everything a classroom needs, built in

Ultra-narrow profile frameSlim bezel that sits flush and neat on any wall.

High-precision 40-point touchInfrared touch for pen and finger, used by a whole group at once.

4K UHD clarity3840×2160 resolution with a 5000:1 contrast ratio.

Scan QR code to shareStudents and staff pull lesson content to their own devices instantly.

Octa-Core / Quad-Core processorSmooth performance across writing, video and web.

PIP dual-system switchingPicture-in-picture makes moving between Android and Windows effortless.

Anti-glare tempered glassStandard 4mm toughened glass that's easy to read from any seat.

Wireless screen shareCast from laptops, tablets and phones with no cables.

Remote meeting readyBuilt-in Wi-Fi and Bluetooth on Android for calls and collaboration.

OPS slot & expandable storageReserved OPS interface, plus optional Android storage up to 1TB.

Camera & microphone (optional)In-built camera and mic available for remote lessons.

Full specifications

Display & system

Model-by-model detail across the IFP series.

Model	IFP55S	IFP65S	IFP75S	IFP86S	IFP98S	IFP110S
Size	55″	65″	75″	86″	98″	110″
Screen brand	LG / BOE A+ Grade
Backlight type	D-LED
Resolution	3840×2160, 5000:1 contrast ratio
Brightness	400cd/m²	450cd/m²	450cd/m²	450cd/m²	460cd/m²	460cd/m²
Response time	6ms	6ms	6ms	6ms	6ms	6ms
Pixel pitch (mm)	0.420×0.315	0.496×0.372	0.429×0.429	0.4935×0.4935	0.5622×0.5622	0.5622×0.5622
Frequency	60Hz	60Hz	60Hz	120Hz	120Hz	120Hz
Life time	50,000 hrs	50,000 hrs	50,000 hrs	50,000 hrs	50,000 hrs	50,000 hrs
Display colors	1.07B (10-bit)
Weight (kg)	36.5	41.5	57.5	79	137.5	137.5
Chipset	Rockchip RK3576, high-performance
CPU	Octa-Core processor
GPU	Mali-G52 (powerful GPU)
RAM + ROM	8GB + 128GB
Operating system	Windows 11/10/8/7, Android 16

Product dimensions and viewing areas available on request for each model.

Full specifications

Touch, audio & power

Model	IFP55S	IFP65S	IFP75S	IFP86S	IFP98S	IFP110S
Audio output	2×20W
Sensing type	Infrared touch frame (40 points)
Surface protection	4mm toughened glass
Touch accuracy	±1mm
Output mode	HID standard
Theory clicks	Unlimited
Connect type	USB full speed
Power requirements	AC 100V ~ 240V, 50/60Hz
Power (no OPS)	110W	120W	210W	290W	350W	350W
Standby	<0.5W
OPS power	DC 18V / 5A
Voltage	DC +5V ±5%
Housing material	Aluminium / metal plate, black + grey
Accessories	Power cable ×1, pen ×2, wall mount ×1, remote ×1

Want pricing for your preferred size?

Send us the model and quantity you're considering and we'll come back with a quote and lead time.
